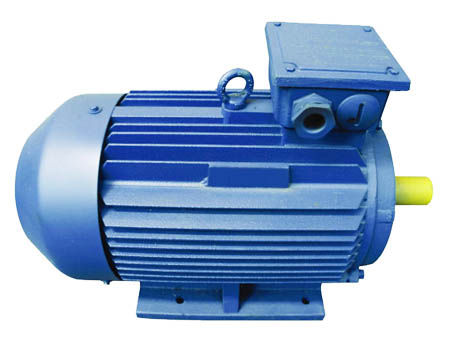

YE3 Supper High Efficiency Induction Electric Motor (IE3)

Technical characteristics

Electrical performance data

Mechanical dimension data

Totally enclosed fan-cooled motors are designed according to IEC, GB and other standards.

The frames are made of cast iron, while terminal boxes can be made of steel plate.

The efficiency can meet the requirements of GB18613-2013 and IEC60034-30 standards.

Motors with frame 80-132 that are equipped with gasket sealing on DE are standard, and the standard for frame 160 and above motors are with sealing on DE.

Winding designs can support several kinds of voltage and frequency (50HZ or 60HZ).

It can stand 1.5 times more of rated current within 2 minutes (IEC60034-1).

Heater can be added to prevent moisture.

PTC, PT100 and other thermal elements can be chose to protect winding and bearings.

Product advantages

Efficiency improvement

New winding designs and low loss silicon steel sheets are applied to decrease the motors loss and improve the efficiency.

Reliable quality and superior characteristics

In order to insure the good insulation and extend the lifetime, standard motors are examined with F insulation and 80K temperature-rise.

Voltage, Efficiency

According to Class A voltage and frequency tolerance demands in IEC60034-1 standard, the motor’s voltage tolerance is ±5%, and the frequency tolerance is ±2%.

Rated output

Rated output means it can meet IEC 600341-1 standard, continuous working can output when coolant temperature (CT) is 40℃ and the altitude of working site is under 1000m. Besides, the motors can stand 1.5 times more of rated current within 2 minutes under rated voltage and frequency.

APPLICATIONS

Motors can be applied to all kinds of machines, such as machine tool, air compressor, pump, ventilation, reduction gear, transmission belt, mining equipment, metallic equipment. However, motors can’t be used with inflammable, explosive and corrosive working site.

Product technical standards

名稱Title	IEC標準 IEC standard	中國國家標準 Chinese standard
旋轉電動機定額和性能 Rotating electrical machines-Part I:Rating and performance	IEC 60034-1	GB 755
旋轉電動機損耗與效率確定的標準測試方法 losses and efficiency from tests(excluding machines for traction vehicles)	IEC 60034-2	GB/T 1032
旋轉電機整體結構的防護等級（IP代碼）分級 Rotating electrical machines-Part 5:Degrees of protection provided by the integral design of rotating electrical machines(IP code) -Classification	IEC 60034-5	GB/T 4942.1
旋轉電動機冷卻方法 Rotating electrical machines-Part6: Methods of cooling( IC Code)	IEC 60034-6	GB/T 1993
旋轉電動機結構犁式、安裝型式及接線盒位置的分類（IM代碼） Rotating electrical machines-Part7: Classification of types of construction, mounting arrangements and terminal box position( IM Code)	IEC 60034-7	GB/T 997
旋轉電動機旋轉電機線端標志與旋轉方向 Rotating electrical machines-Part8: Terminal markings and direction of rotation	IEC 60034-8	GB/T 1971
旋轉電機噪聲測定方法及限值第9部分：噪聲限值 Rotating electrical machines-Part9: Noise limits	IEC 60034-9	GB 10069.3
軸中心高為56mm及以上電機的機械振動振動的測量、評定及限值 Rotating electrical machines-Part14: Mechanical vibration of certain machines with shaft heights 56 mm and higher- Measurement, evaluation and limits of vibration severity	IEC 60034-14	GB 10068
旋轉電機尺寸和輸出功率等級第1部分：機座號56-400和凸緣號55-1080 Rotating electrical machines-Partl: Frame numbers 56 t0 400 and flange numbers 55 to 1080	IEC 60072-1	GB/T 4772.1
中小型旋轉電機安全耍求 Safety requirments of small and medium size rotating electrical machines		GB 144711
旋轉電動機溫升 Electrical insulation-Thermal classification	IEC 60085	GB/T 11021
電工電子產品自然環境條件溫度和濕度 Classification of environmental conditions Part 2-1: Environmental conditions appearing in nature-Temperature and humidity	IEC 60072-2-1	GB/T 4797.1
標準電壓 Standard voltages	IEC 60038	GB/T 156

Product use environment

環境
適臺IP55防護等級的安裝
低于或等于海拔i1000米
環境溫度在-15℃-40℃
相對濕度

Operating Environment
Suitable for IP55 installations
Altitude not exceed 1000m
Ambient temperature -15℃ - 40℃
Relative humidity

溫度 Temperature	相對濕度 Relative Humidity
-15℃ ≤ T ≤ 20℃	100%
20℃ ≤ T ≤ 30℃	95%
30℃ ≤ T ≤ 40℃	55%

如果環境溫度和海拔高度不同，電機功率要考慮以下系數作選型
Motor Powers will be considered according to following data,if the ambient temperature and altitude are different

	<30℃	30℃~40℃	45℃	50℃	55℃	60℃
1000m	1.07	1.00	0.96	0.92	0.87	0.82
1500m	1.04	0.97	0.93	0.89	0.84	0.79
2000m	1.00	0.94	0.90	0.86	0.82	0.77
2500m	0.96	0.90	0.86	0.83	0.78	0.74
3000m	0.92	0.86	0.82	0.79	0.75	0.70
3500m	0.88	0.82	0.79	0.75	0.71	0.67
4000m	0.82	0.77	0.74	0.71	0.67	0.63

Motor Type	Rated Power		Rated Speed	Efficiency	Power Factor	Current			Torque			Moment of inertia(J)	Approx WT
	Rated Power		Rated Speed	Efficiency	Power Factor	FULL Load 400V	FULL Load 690V	Locked Rotor	Full Load	Locked Rotor	Pull Out	Moment of inertia(J)	Approx WT
	KW	(HP)	RPM	%		A	A	%FLC	Kg-m	%FLT	%FLT	Kg-m²	Kg
IE3-80K2	0.75	1.0	2845	82.1	0.82	1.6	0.9	7.5	0.3	2.2	2.3	0.0011	18
IE3-80G2	1.1	1.5	2865	83.8	0.83	2.3	1.3	7.4	0.4	2.1	2.2	0.0013	19
IE3-80G4	0.75	1.0	1410	84.0	0.75	1.7	1.0	7.3	0.5	2.3	2.3	0.0017	20
IE3-90S2	1.5	2.0	2875	85.0	0.84	3.0	1.8	7.5	0.5	2.1	2.2	0.0019	24
IE3-90L2	2.2	3.0	2865	86.4	0.85	4.3	2.5	7.5	0.7	2.2	2.3	0.0022	27
IE3-90S4	1.1	1.5	1415	85.3	0.76	2.4	1.4	7.5	0.7	2.3	2.6	0.0021	24
IE3-90L4	1.5	2.0	1420	86.3	0.77	3.3	1.9	7.6	1.0	2.4	2.7	0.0027	30
IE3-90S6	0.75	1.0	905	80.6	0.69	1.9	1.1	6.3	0.8	2.0	2.3	0.0032	25
IE3-90L6	1.1	1.5	910	82.4	0.70	2.8	1.6	6	1.2	1.9	2.3	0.0041	27
IE3-100L2	3	4.0	2860	87.5	0.87	5.7	3.3	7.6	1.0	2.0	2.2	0.0043	36
IE3-100L4	2.2	2.9	1420	87.5	0.77	4.7	2.7	7.5	1.5	2.4	2.7	0.0054	37
IE3-100LX4	3	4.0	1440	88.4	0.78	6.3	3.6	7.4	2.0	2.5	2.8	0.0067	41
IE3-100L6	1.5	2.0	925	83.8	0.70	3.7	2.1	6.4	1.5	2.0	2.5	0.0085	36
IE3-112M2	4	5.5	2870	88.4	0.88	7.4	4.3	7.5	1.3	2.2	2.3	0.0065	43
IE3-112M4	4	5.5	1445	89.2	0.78	8.3	4.8	7.6	2.6	2.4	2.7	0.0086	48
IE3-112M6	2.2	3.0	920	85.4	0.70	5.3	3.1	6.5	2.3	2.0	2.8	0.0133	42
IE3-132S2	5.5	7.5	2880	89.4	0.88	10.1	5.8	7.4	1.8	2.1	2.2	0.0146	65
IE3-132SX2	7.5	10.0	2925	90.3	0.88	13.6	7.9	7.5	2.4	2.2	2.4	0.0147	70
IE3-132S4	5.5	7.5	1460	90.0	0.79	11.2	6.5	7.5	3.6	2.3	2.6	0.0205	71
IE3-132M4	7.5	10.0	1466	90.8	0.80	14.9	8.6	7.7	4.9	2.4	2.7	0.0296	83
IE3-132S6	3	4.0	930	86.6	0.71	7.0	4.1	6.3	3.1	2.0	2.7	0.0372	63
IE3-132M6	4	5.5	945	87.7	0.72	9.1	5.3	6.2	4.0	2.1	3.0	0.0489	80
IE3-132MX6	5.5	7.5	965	88.7	0.72	12.4	7.2	6	5.4	1.9	2.8	0.0585	85
IE3-160L2	11	15	2960	91.2	0.89	19.6	11.3	8.4	4	3.1	3.7	0.0510	116
IE3-160LX2	15	20	2940	91.9	0.88	26.9	15.6	7.8	5	2.6	2.9	0.0637	126
IE3-160LY2	18.5	25	2940	92.4	0.88	32.8	19.0	7.6	6	2.3	3.0	0.0765	145
IE3-160L4	11	15	1475	91.7	0.85	20.4	11.8	7.8	7	2.5	3.1	0.1068	128
IE3-160LX4	15	20	1475	92.3	0.81	29.0	16.8	7.8	10	2.9	3.3	0.1287	149
IE3-160L6	7.5	10	975	89.7	0.74	16.3	9.4	6.0	7	1.9	3.0	0.1170	135
IE3-160LX6	11	15	975	90.8	0.75	23.3	13.5	6.7	11	2.1	2.7	0.1775	140
IE3-180M2	22	30	2950	92.7	0.88	38.8	22.5	7.9	7	2.7	3.6	0.1170	185
IE3-180M4	18.5	25	1475	92.7	0.82	35.3	20.5	7.9	12	2.5	3.6	0.1901	185
IE3-180L4	22	30	1475	93.1	0.80	42.9	24.9	7.8	14	2.5	3.8	0.2264	200
IE3-180L6	15	20	985	91.6	0.77	30.9	17.9	6.3	15	2.1	3.1	0.3158	190
IE3-200L2	30	40	2960	93.3	0.87	53.3	30.9	7.4	10	2.4	3.4	0.1737	237
IE3-200LX2	37	50	2960	93.7	0.87	65.8	38.2	7.6	12	2.4	3.3	0.2048	251
IE3-200L4	30	40	1480	93.6	0.81	56.8	32.9	8.8	19	2.7	3.5	0.3612	258
IE3-200L6	18.5	25	985	92.1	0.77	37.6	21.8	7.3	18	2.4	3.1	0.4684	257
IE3-200LX6	22	30	985	92.5	0.78	44.1	25.6	7.5	21	2.4	3.1	0.5483	308
IE3-225M2	45	60	2950	94.0	0.88	78.6	45.6	7.8	15	2.3	3.4	0.3020	320
IE3-225S4	37	50	1485	94.0	0.68	83.4	48.4	6.6	24	3.2	3.9	0.6300	314
IE3-225M4	45	60	1485	94.3	0.84	82.0	47.5	7.8	29	3.2	3.7	0.7384	347
IE3-225M6	30	40	985	93.1	0.82	56.9	33.0	6.8	29	2.6	3.1	0.8842	315
IE3-250M2	55	75	2970	94.3	0.89	94.5	54.8	7.1	18	2.0	3.3	0.4077	396
IE3-250M4	55	75	1485	94.5	0.86	98.1	56.9	7.7	35	2.5	3.6	1.0236	405
IE3-250M6	37	50	985	93.5	0.84	68.4	39.7	7.3	36	2.3	3.4	1.1968	410
IE3-280S2	75	100	2975	94.7	0.88	129.5	75.1	6.3	24	2.0	2.9	0.7988	550
IE3-280M2	90	120	2980	95.0	0.88	155.4	90.1	7.7	29	2.5	3.7	1.0708	580
IE3-280S4	75	100	1490	95.0	0.85	134.7	78.1	7.3	48	2.6	3.2	2.0828	610
IE3-280M4	90	120	1490	95.2	0.86	158.9	92.1	7.6	58	2.6	3.4	2.5457	670
IE3-280S6	45	60	990	93.9	0.84	82.0	47.5	7.4	43	2.7	3.5	2.3382	475
IE3-280M6	55	75	990	94.2	0.84	100.4	58.2	8.0	53	3.2	4.0	2.7975	550
IE3-315S2	110	145	2970	95.2	0.90	184.7	107.1	7.4	35	2.0	3.2	2.0314	970
IE3-315M2	132	175	2975	95.4	0.91	220.4	127.8	7.0	42	1.8	2.9	2.2065	1030
IE3-315L2	160	215	2970	95.6	0.90	269.3	156.1	6.6	51	1.8	3.0	2.4867	1140
IE3-315LX2	200	270	2965	95.8	0.91	332.6	192.8	6.4	64	1.9	3.0	2.9069	1220
IE3-315S4	110	145	1490	95.4	0.85	195.1	113.1	7.8	71	3.0	3.9	3.4904	970
IE3-315M4	132	175	1490	95.6	0.88	226.7	131.4	8.0	85	2.9	4.0	4.0139	1060
IE3-315L4	160	215	1490	95.8	0.86	279.0	161.7	7.9	103	3.0	4.1	5.2356	1160
IE3-315LX4	200	270	1490	96.0	0.89	339.8	197.0	6.1	128	2.7	3.3	5.7010	1270
IE3-315S6	75	100	990	94.7	0.83	138.2	80.1	7.4	72	2.5	3.4	4.7411	915
IE3-315M6	90	120	990	94.9	0.83	164.5	95.4	7.6	87	2.7	3.6	5.8225	996
IE3-315L6	110	145	990	95.2	0.84	198.8	115.2	7.7	106	2.8	3.7	6.6542	1175
IE3-315LX6	132	175	990	95.4	0.84	238.6	138.3	7.8	127	2.8	3.7	7.9851	1225
IE3-355M2	250	335	2980	95.8	0.90	417.1	241.8	7.7	80	2.0	3.5	3.8123	1780
IE3-355L2	280	375	2975	95.8	0.91	464.1	269.0	6.9	90	1.7	3.1	3.8123	1790
IE3-355LX2	315	420	2980	95.8	0.92	515.9	299.1	8.2	101	2.1	3.8	4.4632	1808
IE3-355LY2	355	475	2975	95.8	0.91	587.8	340.7	7.2	114	1.9	3.4	4.4632	1828
IE3-355M4	250	335	1490	96.0	0.89	423.3	245.4	7.3	160	2.3	3.5	9.2972	1815
IE3-355L4	280	375	1490	96.0	0.89	471.4	273.3	6.5	180	2.0	3.1	9.2972	1915
IE3-355LX4	315	420	1490	96.0	0.88	537.0	311.3	7.0	202	2.3	3.4	10.2863	2000
IE3-355LY4	355	475	1490	96.0	0.89	597.7	346.5	7.2	228	2.2	3.3	11.2754	2060
IE3-355M6	160	215	990	95.6	0.85	285.2	165.3	7.0	154	1.9	3.3	10.3863	1790
IE3-355MX6	185	250	990	95.8	0.85	329.9	191.2	7.3	178	2.0	3.4	10.8930	1840
IE3-355MY6	200	270	990	95.8	0.85	354.9	205.8	7.1	193	1.9	3.3	12.4130	1890
IE3-355L6	220	300	990	95.8	0.85	390.0	226.1	7.4	212	2.0	3.5	13.1729	1905
IE3-355LX6	250	335	990	95.8	0.87	434.0	251.6	6.7	241	1.8	2.9	13.9329	1920
IE3-355LY6	280	375	990	95.8	0.86	491.7	285.0	7.1	270	1.9	3.1	14.6929	2106

OMTI-IE2 SERIES

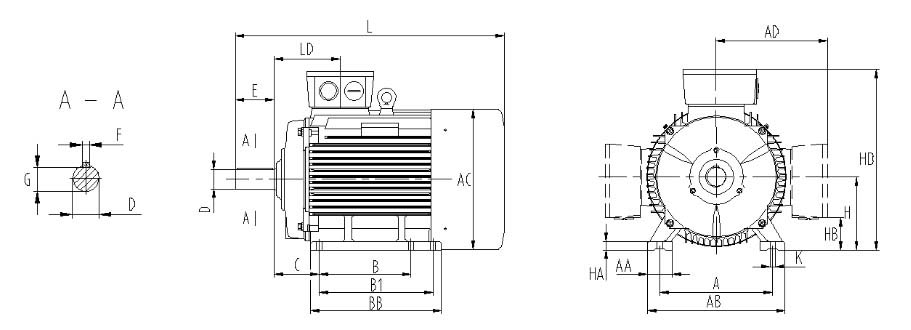

B3：Dimension Drawings

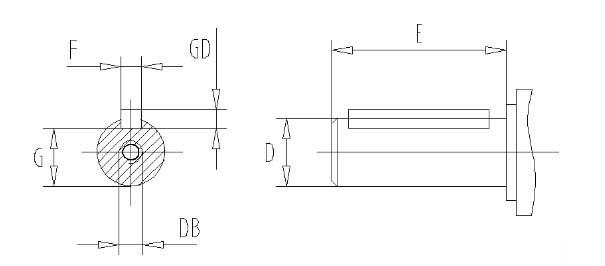

The shaft dimension will be showed in anther table

Frame	Pole	Mounting dimension						Overall dimension
		A	B	B1	C	H	K	AA	AB	AC	AD	BB	HA	HB	HD		L	LD
		A	B	B1	C	H	K	AA	AB	AC	AD	BB	HA	HB	top	left/right	L	LD
80	2-8	125	100	-	50	80°-0.5	10	35	160	160	145	130	12	36	225	160	280	75
90S	2-8	140	100	-	56	90°-0.5	10	36	180	180	155	140	12	50	245	180	335	75
90L	2-8	140	125	-	56	90°-0.5	10	36	180	180	155	165	12	50	245	180	360	75
100L	2-8	160	140	-	63	100°-0.5	12	40	200	200	180	175	14	55	280	200	395	83
112M	2-8	190	140	-	70	112°-0.5	12	45	230	220	190	180	15	60	305	222	420	87
132S	2-8	216	140	-	89	132°-0.5	12	55	265	260	220	190	18	65	355	262	465	102
132M	2-8	216	178	-	89	132°-0.5	12	55	265	260	220	230	18	65	355	262	505	102
160M	2-8	254	210	-	108	160°-0.5	15	65	315	315	265	260	20	81	425	385	608	146
160L	2-8	254	254	-	108	160°-0.5	15	65	315	315	265	305	20	81	425	385	652	146
180M	2.4	279	241	-	121	180°-0.5	15	70	350	360	280	315	22	105	460	420	690	161
180L	4-8	279	279	-	121	180°-0.5	15	70	350	360	280	350	22	105	460	420	730	161
200L	2-8	318	305	-	133	200°-0.5	19	70	390	400	310	370	25	85	510	475	760	186
225S	4-8	356	286	-	149	225°-0.5	19	75	435	450	335	370	28	110	555	535	810	189
225M	2	356	311	-	149	225°-0.5	19	75	435	450	335	395	28	110	555	535	805	189
225M	4-8	356	311	-	149	225°-0.5	19	75	435	450	335	395	28	110	555	535	835	189
250M	2	406	349	-	168	250°-0.5	24	80	485	485	375	445	30	110	625	570	910	207
250M	4-8	406	349	-	168	250°-0.5	24	80	485	485	375	445	30	120	625	570	910	207
280S	2	457	368	-	190	280°-1.0	24	85	545	550	405	490	35	142	685	660	985	215
280S	4-8	457	368	-	190	280°-1.0	24	85	545	550	405	490	35	142	685	660	1005	215
280M	2	457	419	-	190	280°-1.0	24	85	545	550	405	540	35	142	685	660	1030	215
280M	4-8	457	419	-	190	280°-1.0	24	85	545	550	405	540	35	142	685	660	1060	215
315S	2	508	406	-	216	315°-1.0	28	120	630	625	530	570	45	110	845	750	1180	257
315S	4-8	508	406	-	216	315°-1.0	28	120	630	625	530	570	45	110	845	750	1210	257
315M	2	508	457	508	216	315°-1.0	28	120	630	625	530	680	45	110	845	750	1290	257
315L	4-8	508	457	508	216	315°-1.0	28	120	630	625	530	680	45	110	845	750	1320	257
355	2	610	560	630	254	355°-1.0	28	120	730	700	615	750	52	110	970	810	1526	284
355	4-8	610	560	630	254	355°-1.0	28	120	730	700	615	750	52	110	970	810	1556	284

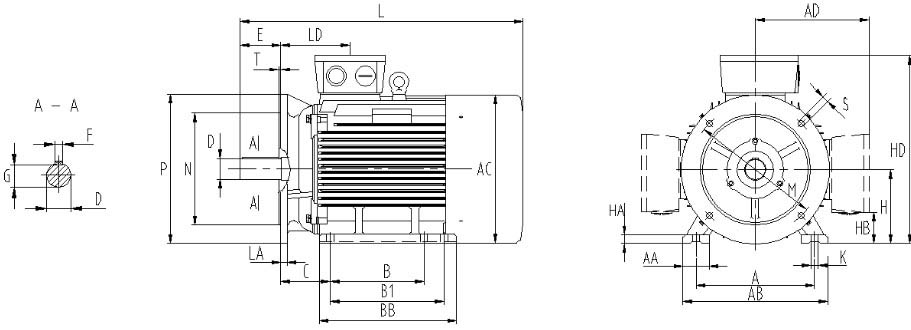

B35：Dimension Drawings
The shaft dimension will be showed in anther table

Frame	Pole	Mounting dimension												Overall dimension
		A	B	B1	C	H	K	M	N	P	R	S	T	AA	AB	AC	AD	BB	HA	HB	HD		L	LA	LD
		A	B	B1	C	H	K	M	N	P	R	S	T	AA	AB	AC	AD	BB	HA	HB	上出線	左右出線	L	LA	LD
80	2-8	125	100	-	50	80°-0.5	10	165	130	200	0	4-Φ12	4	35	160	160	145	130	12	36	225	160	280	12	75
90S	2-8	140	100	-	56	90°-0.5	10	165	130	200	0	4-Φ12	4	36	180	180	155	140	12	50	245	180	335	12	75
90L	2-8	140	125	-	56	90°-0.5	10	165	130	200	0	4-Φ12	4	36	180	180	155	165	12	50	245	180	360	12	75
100L	2-8	160	140	-	63	100°-0.5	12	215	180	250	0	4-Φ15	4	40	200	200	180	175	14	55	280	200	395	13	83
112M	2-8	190	140	-	70	112°-0.5	12	215	180	250	0	4-Φ15	4	45	230	220	190	180	15	60	305	222	420	14	87
132S	2-8	216	140	-	89	132°-0.5	12	265	230	300	0	4-Φ15	4	55	265	260	220	190	18	65	355	262	465	14	102
132M	2-8	216	178	-	89	132°-0.5	12	265	230	300	0	4-Φ15	4	55	265	260	220	230	18	65	355	262	505	14	102
160M	2-8	254	210	-	108	160°-0.5	15	300	250	350	0	4-Φ19	5	65	315	315	265	260	20	81	425	385	608	15	146
160L	2-8	254	254	-	108	160°-0.5	15	300	250	350	0	4-Φ19	5	65	315	315	265	305	20	81	425	385	652	15	146
180M	2.4	279	241	-	121	180°-0.5	15	300	250	350	0	4-Φ19	5	70	350	360	280	315	22	105	460	420	690	15	161
180L	4-8	279	279	-	121	180°-0.5	15	300	250	350	0	4-Φ19	5	70	350	360	280	350	22	105	460	420	730	15	161
200L	2-8	318	305	-	133	200°-0.5	19	350	300	400	0	4-Φ19	5	70	390	400	310	370	25	85	510	475	760	17	186
225S	4-8	356	286	-	149	225°-0.5	19	400	350	450	0	8-Φ19	5	75	435	450	335	370	28	110	555	535	810	20	189
225M	2	356	311	-	149	225°-0.5	19	400	350	450	0	8-Φ19	5	75	435	450	335	395	28	110	555	535	805	20	189
225M	4-8	356	311	-	149	225°-0.5	19	400	350	450	0	8-Φ19	5	75	435	450	335	395	28	110	555	535	835	20	189
250M	2	406	349	-	168	250°-0.5	24	500	450	550	0	8-Φ19	5	80	485	485	375	445	30	110	625	570	910	22	207
250M	4-8	406	349	-	168	250°-0.5	24	500	450	550	0	8-Φ19	5	80	485	485	375	445	30	120	625	570	910	22	207
280S	2	457	368	-	190	280°-0.1	24	500	450	550	0	8-Φ19	5	85	545	550	405	490	35	142	685	660	985	22	215
280S	4-8	457	368	-	190	280°-0.1	24	500	450	550	0	8-Φ19	5	85	545	550	405	490	35	142	685	660	1005	22	215
280M	2	457	419	-	190	280°-0.1	24	500	450	550	0	8-Φ19	5	85	545	550	405	540	35	142	685	660	1030	22	215
280M	4-8	457	419	-	190	280°-0.1	24	500	450	550	0	8-Φ19	5	85	545	550	405	540	35	142	685	660	1060	22	215
315S	2	508	406	-	216	315°-0.1	28	600	550	660	0	8-Φ24	6	120	630	625	530	570	45	110	845	750	1180	22	257
315S	4-8	508	406	-	216	315°-0.1	28	600	550	660	0	8-Φ24	6	120	630	625	530	570	45	110	845	750	1210	22	257
315M	2	508	457	508	216	315°-0.1	28	600	550	660	0	8-Φ24	6	120	630	625	530	680	45	110	845	750	1290	22	257
315L	4-8	508	457	508	216	315°-0.1	28	600	550	660	0	8-Φ24	6	120	630	625	530	680	45	110	845	750	1320	22	257
355	2	610	560	630	254	355°-0.1	28	740	680	800	0	8-Φ24	6	120	730	700	615	750	52	125	970	830	1526	25	284
355	4-8	610	560	630	254	355°-0.1	28	740	680	800	0	8-Φ24	6	120	730	700	615	750	52	125	970	830	1556	25	284

Shaft Dimension Drawings

Frame	Pole	D	E	F	G	GD	DB
80	2、4、6、8	19j6(+0.009 -0.004)	40	6	15.5	6	M6
90S	2、4、6、8	24j6(+0.009 -0.004)	50	8	20	7	M8
90L	2、4、6、8	24j6(+0.009 -0.004)	50		20		M8
100L	2、4、6、8	28j6(+0.009 -0.004)	60		24		M10
112M	2、4、6、8	28j6(+0.009 -0.004)	60		24		M10
132S	2、4、6、8	38k6(+0.018 -0.002)	80	10	33	8	M12
132M	2、4、6、8	38k6(+0.018 -0.002)	80	10	33		M12
160M	2、4、6、8	42k6(+0.018 -0.002)	110	12	37		M16
160L	2、4、6、8	42k6(+0.018 -0.002)		12	37
180M	2.4	48k6(+0.018 -0.002)		14	42.5	9
180L	4、6、8	48k6(+0.018 -0.002)		14	42.5	9
200L	2	55m6(+0.03 -0.011)		16	49	10	M20
200L	4、6、8	55m6(+0.03 -0.011)		16	49	10
225S	4、6、8	60m6(+0.03 -0.011)	140	18	53	11
225M	2	55m6(+0.03 -0.011)	110	16	49	10
225M	4、6、8	60m6(+0.03 -0.011)	140	18	53	11
250M	2	60m6(+0.03 -0.011)			53	11
250M	4、6、8	65m6(+0.03 -0.011)			58	11
280S	2	65m6(+0.03 -0.011)			58	11
280S	4、6、8	75m6(+0.03 -0.011)		20	67.5	12
280M	2	65m6(+0.03 -0.011)		18	58	11
280M	4、6、8	75m6(+0.03 -0.011)		20	67.5	12
315S	2	65m6(+0.03 -0.011)	140	18	58	11
315S	4、6、8	80m6(+0.03 -0.011)	170	22	71	14
315M 315L	2	65m6(+0.03 -0.011)	140	18	58	11
315M 315L	4、6、8	80m6(+0.03 -0.011)	170	22	71	14
355	2	75m6(+0.03 -0.011)	140	20	67.5	12
355	4、6、8	95m6(+0.035 -0.013)	170	25	86	14

Previous Product: YE2 High Efficiency Induction Electric Motor (IE2)
Next Product: Y2 Low Voltage Big Power Electric Motor

　
　　　　　　 YOU CAN CONTACT US IMMEDIATELY:

Name：	*
Phone：
Email：	*
Other Contact：
Topic：
Contents：	*
Verification Code：	1362 *
